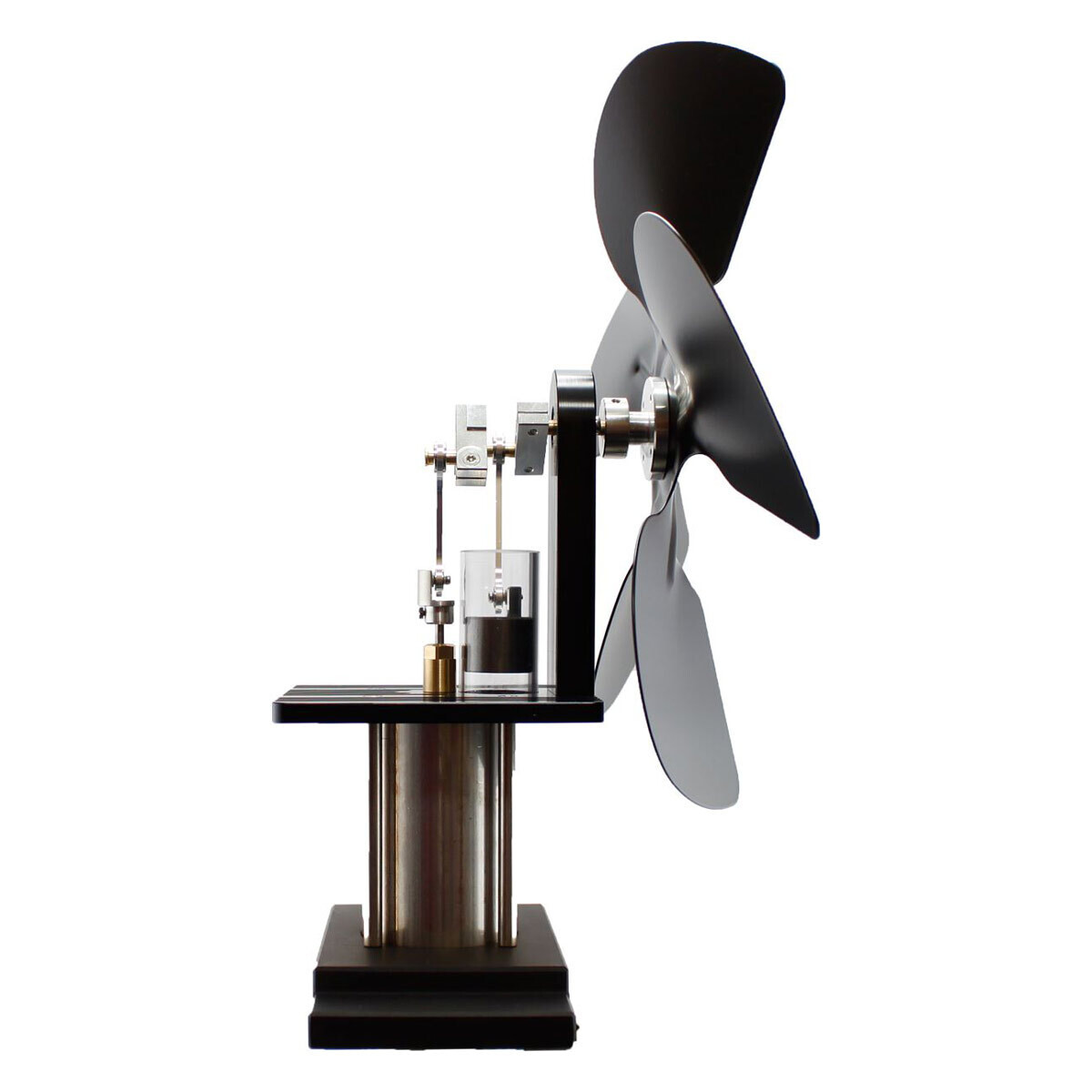

Vulcan Maxi Stove-Top Stirling Engine Fan - B Grade

B-Grade Vulcan stove fan

We have a number of stove fans that we are selling off as "B-Grade". These are either brand new stove fans with older style blades. Maybe 5 or 6 blades, or could also be 5 blade solid sheet part which we used a few years ago (we have some of the blades/hubs left). We have sold the vulcan with a number of different types of blades over the years and we wanted to clear some old stock.

It could also be a returned stove fan and repacked. Usual reasons for return are unwanted gift, doesn't physically fit or stove was not hot enough to run.

What does it do?

The Vulcan stove fan is a Stirling engine powered fan that quietly and efficiently circulates warm air from your wood stove, coal stove or other heat source, through your home or workshop, dramatically increasing the effectiveness of your heating appliance and improving your comfort level. No longer will you have to stoke your stove to blazing hot temperatures only to end up with a VERY hot area in the direct proximity of your stove and mildly warm air across the room. The Vulcan stove fan helps to uniformly circulate the air, leaving you a cozy, comfortable atmosphere to enjoy while reducing the amount of fuel your appliance consumes. In addition, the Vulcan costs you absolutely nothing to operate!

How does it work?

The Vulcan stove fan does not require any electricity and is powered just from the heat of your stove. It utilizes a small, quiet Stirling cycle power plant built into the fan, making it a very eco friendly fan.

The Stirling cycle power plant obtains its power from rapidly heating and cooling the same volume of air. When the air is heated, it expands, pushing a piston upward; when the same volume of air is rapidly cooled, it contracts, pulling the same piston downward, providing power. The same volume of air is heated and cooled very rapidly converting the heat energy to mechanical energy used to turn the fan blade.

The Vulcan Stove Fan is named after Vulcan, the ancient Roman god of fire.

Main features:

• No electricity needed, works entirely from the heat from the stove
• 100% mechanical, no fragile electronics
• Quiet, safe, economical operation, eco friendly
• Zero maintenance (technical advances means no oiling)
• Circulates up to 2.2 times more air than other stove fans
• Operates on almost all stoves from 150 C (300F) to 450 C (840 F)

Materials

• Aluminium base, top and pillar
• PEEK connecting rod bushes
• Micron precision Borosilicate glass cylinder
• Extremely low friction self-lubricating graphite piston
• Stainless steel chamber pillars
• Oilite and brass gland with stainless steel displacer rod

Dimensions

• Overall height: 308mm (12.1")
• Overall width: 254mm (10")
• Base dimensions: 154mm X 77mm (6" x 3")
• Weight: 1.15Kg / 2.53lbs
• Fan diameter: 254cm (10")

Further information

For further information about the fan visit the dedicated Vulcan stove fan website.

Warranty

Comes with a 3 year comprehensive manufacturer warranty.

Instructions

Click the image below for PDF assembly, operation and maintenence instructions for this fan.
