Nano Gear Stirling Engine
+2

Nano Gear Stirling Engine

5.0
1 review
Reviews from verified customers who have purchased products at this store.
SKU NANO-GEA
£87.50
On Sale
was £116.67 Save 25%
A gear-driven gamma-configured High Temperature Stirling engine with anodised aluminium frame.
In stock: 8 available
Save this product for later
Customer reviews
Reviews only from verified customers
Reviews are only accepted from verified customers who have signed in and purchased the products. This ensures that each review is based on genuine customer experiences. All reviews are checked before publication to prevent spam.
Darren P.
St.Helens,
United Kingdom
Mon 11 Nov 2024
Superb quality excellent model
Show review
Have questions?
Share this product with your friends
ShareSharePin it
Nano Gear Stirling Engine
Product Details
UPC: 5060188060765
Brand: Kontax

Gamma Engine with gear-driven displacer

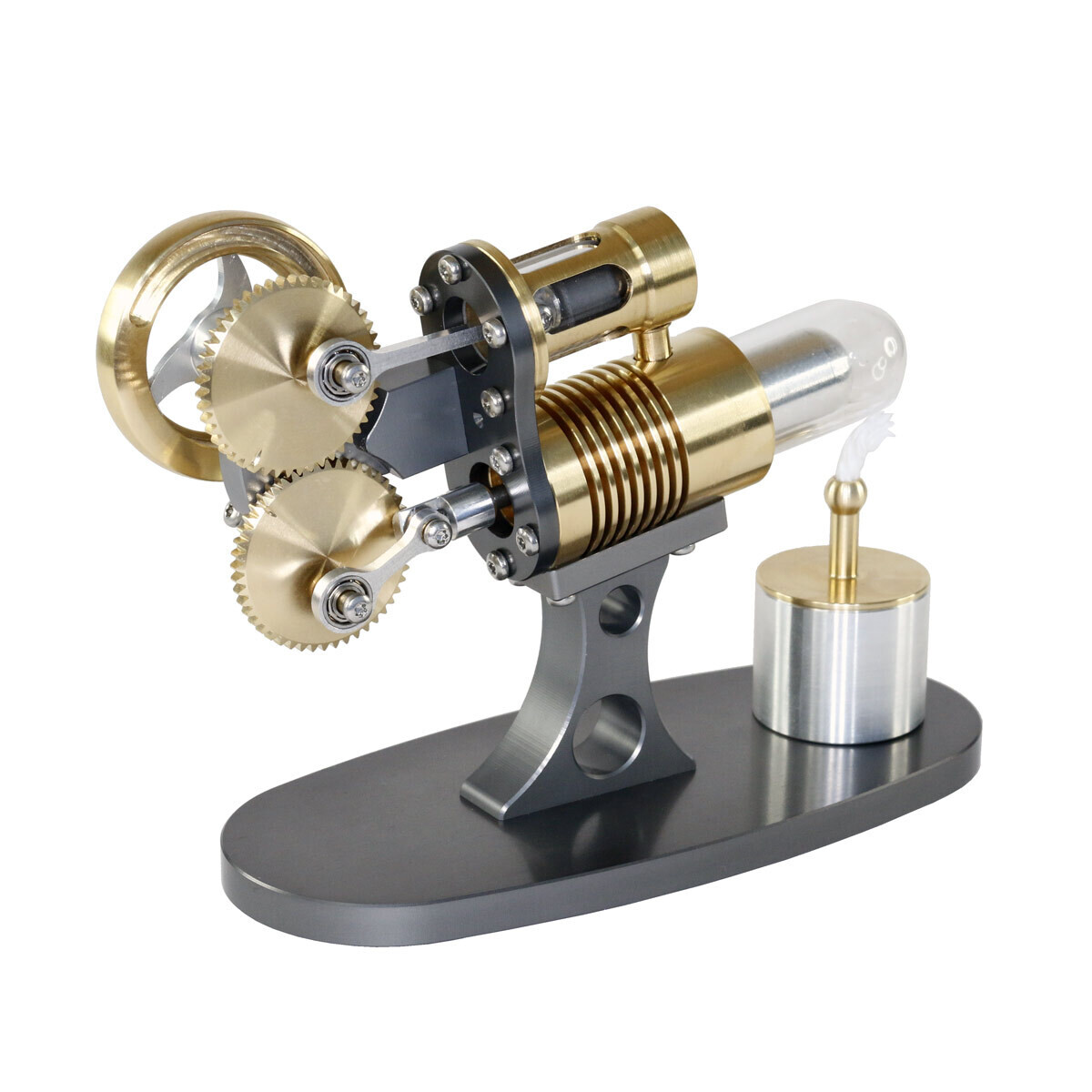

The Kontax Nano Gear Stirling engine is a gamma configuration engine where the 90° phase between the piston and displacer is provided by a gear-driven linkage. It has an anodised aluminium construction with delicately machined brass fittings and the solid brass flywheel rim has integral balancing, allowing the engine to run at over 2000 rpm on a tiny candle-sized flame. In operation the gears are meshed so that the displacer is advanced 90° ahead of the power piston. The gears also act as additional flywheel mass which helps minimise the vibrations inherent in a gamma engine.

How does it work?

Stirling engines work by cyclically heating and cooling the air inside the main chamber. As the air heats up it expands, and as it cools down it contracts. This expansion and contraction drives a small power piston which in turn drives the flywheel. The clever thing about Stirling engines is that the mechanism for cycling the heating and cooling of the air is built into the engine in the form of the displacer, which is driven by the flywheel and crank arrangement and moves the air from the warm side to the cool side and back again over and over.

Stirling engines are named after the inventor, Rev. Robert Stirling, who patented his idea in 1816.

Main features:

  • Brass gears
  • Gamma configuration
  • 2000rpm
  • Runs on a tiny methylated spirits or denatured alcohol flame
  • Extremely low friction self-lubricating graphite piston
  • Built in flywheel balancing

Materials

  • Aluminium connecting rods
  • Stainless steel ball-race bearings
  • Micron precision borosilicate glass cylinders
  • Micron precision graphite power piston
  • Aluminium base, foot, and brackets
  • Aluminium flywheel spokes
  • Brass flywheel rim

Dimensions

  • Base - 115mm x 50mm x 5mm thick (4.5" x 1.9" x 0.2")
  • Flywheel - 35mm diameter x 6mm thick (1.4" x 0.23")
  • Power piston - 9.5mm diameter (0.375")
  • Overall height - 115mm (4.5")
  • Burner - 25mm diameter x 40mm high (1" x 1.6")

Assembled

The engine is despatched fully assembled and ready to go.

Instructions

Click the image below for PDF operation and maintenance instructions for this engine.

Nano Gear instructions
