KS90R Ross-yoke Avant Garde Stirling Engine

The Ross Yoke mechanism

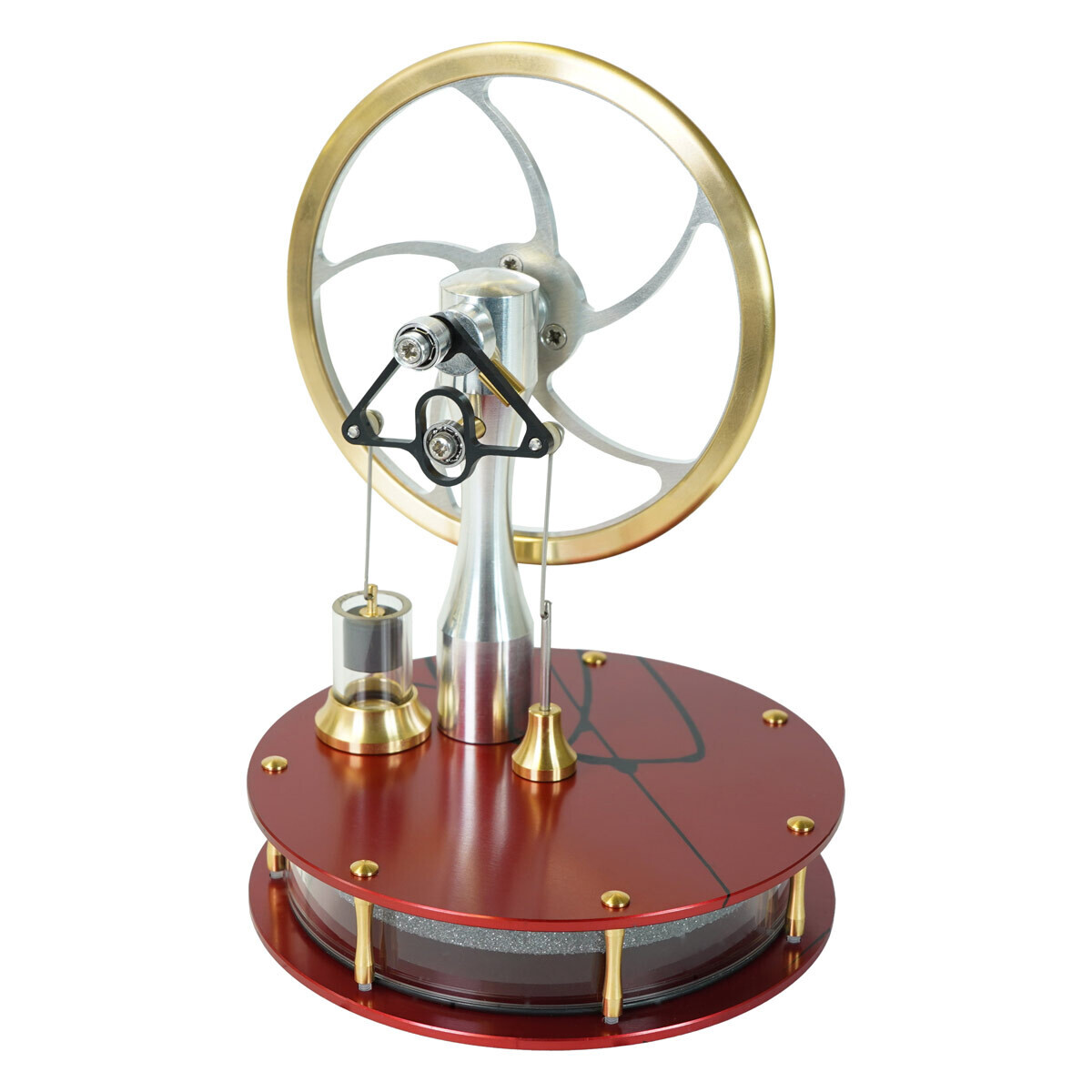

The Kontax KS90R Low Temperature Stirling Engine features Avante Garde anodised and patterned aluminium plates. It also has a unique and fascinating Ross linkage mechanism, which drives both the piston and displacer disc from the same end of the central axle with a cam-driven triangular yoke. The yoke pivots on two precision ball-race bearings, and the oval aperture at the bottom of the yoke pivots on one precision ball-race bearing. The engine also , super-lightweight flywheel spokes and a solid brass rim, all styled in an elegant and efficient manner. The engine is designed in a gamma configuration, with the power cylinder connected directly to the main chamber and both the piston and displacer disc operating in parallel to each other.

Eco-friendly

This KS90R engine is the ultimate eco-friendly device, showing with one spin of the flywheel a clean and simple way of converting waste heat into motion. Because these engines rely on a temperature difference for operation, they will run on almost any heat source. Typical heat sources include hot coffee or tea, warm sunlight, TV digibox and the human hand. As long as one plate is 5°c to 10°c warmer than the other the engine will run. It doesn't matter which plate is warm, as long as the other is cooler. If you warm the bottom plate the engine will run clockwise, if you reverse the temperature differential and warm the top plate the engine will run anti-clockwise.

How does it work?

Stirling engines work by cyclically heating and cooling the air inside the main chamber. As the air heats up it expands, and as it cools down it contracts. This expansion and contraction drives a small piston which in turn drives the flywheel. The clever thing about Stirling engines is that the mechanism for cycling the heating and cooling of the air is built into the engine in the form of the displacer, which is driven by the flywheel and crank arrangement and moves the air from the warm side to the cool side and back again over and over.

The Stirling engine is named after its inventor, Rev. Robert Stirling, who patented his idea in 1816.

Heat Sources

• The engine can run on strong direct sunlight. The top surface will be the hot side and the bottom the cool side and the engine will run anti-clockwise.
• The engine can run on hand heat. If you have a warm hand in a cool room the engine will run from the heat of your hand.
• Placing the engine on top of a freshly made cup tea or coffee (NOT BOILING) will provide enough energy for it to run at a relatively high speed for up to 30 minutes.
• Placing the engine over a bowl of ice will provide enough temperature difference for operation. Similar to solar operation the top surface will be the hot side and the bottom the cool side, and the engine will run anti-clockwise. You can also place a dish of ice on the top plate for clockwise operation.

Main features:

• Red and black patterned plates, no two engines the same!
• Ross linkage mechanism (named after its inventor, Andy Ross)
• Will run on a 5°c to 10°c temperature difference
• Extremely low friction self-lubricating graphite piston
• Built in flywheel balancing
• Main chamber pillars thermally isolated with nylon screws
• Regenerating power piston

Materials

• Stainless steel connecting rods and ball-race bearings
• PEEK connecting rod bushes
• Micron precision borosilicate glass cylinder
• Micron precision graphite power piston
• Aluminium main pillar, hub and spokes
• Brass chamber pillars and flywheel rim
• Brass gland and cylinder holder
• Anodised aluminium plates

Dimensions

• Plates - 92mm diameter, 3mm thick (3.62" x 0.19")
• Displacer - 70mm diameter, 7mm thick (2.75" x 0.27")
• Flywheel - 82.5mm diameter, 4mm thick (3.25" x 0.16")
• Power piston - 9.5mm diameter (0.375")
• Overall height - 130mm (5.11")

Kit

The engine is supplied as a self-assembly kit.

Instructions

Click the image below for PDF assembly, operation and maintenance instructions for this engine.
